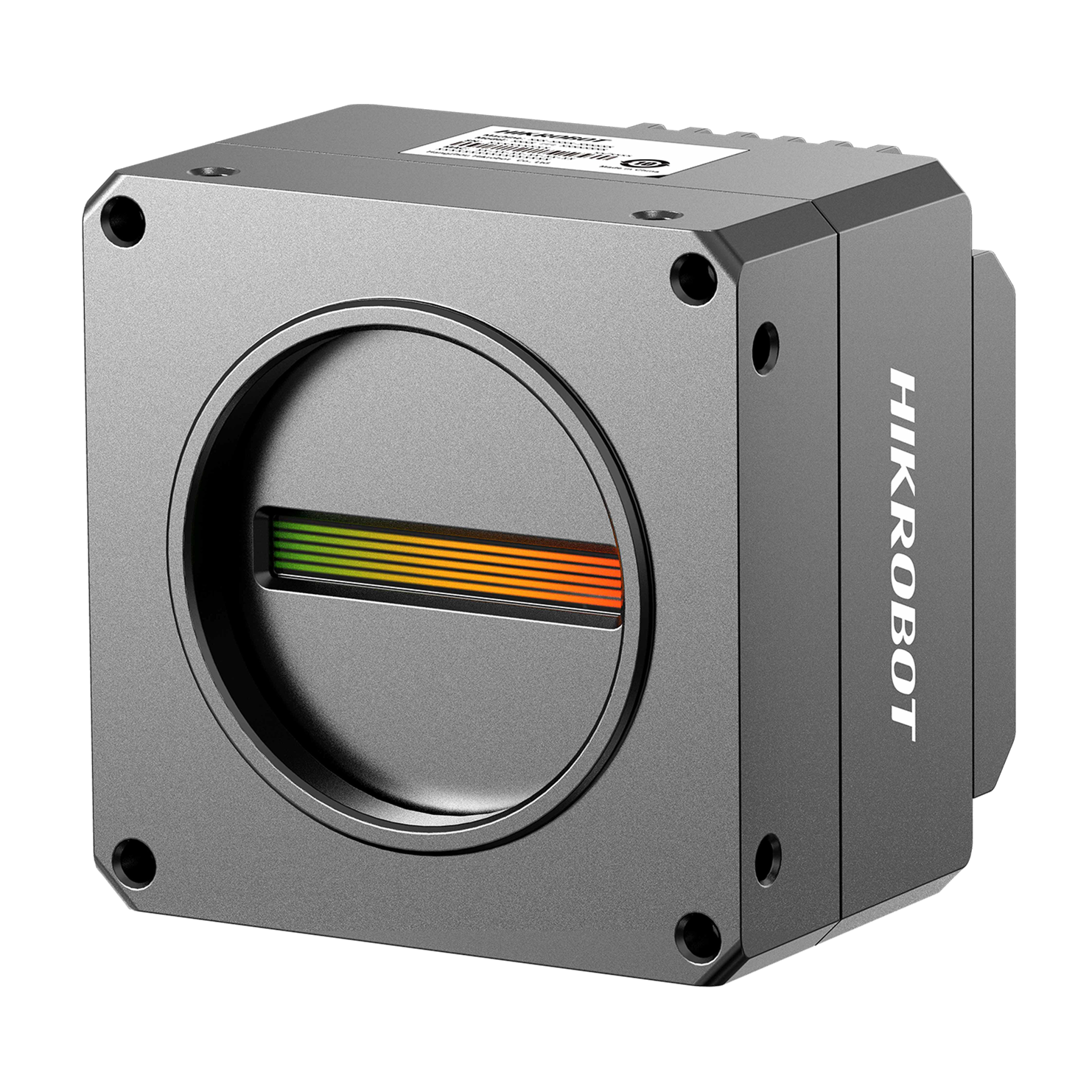

MV-CL044-91NM

4k 7μm, Line Scan, 2.5G, mono

Adopts 2.5 GigE interface to transmit data, and supports max. line rate of 75.3 kHz and peak value of 160 kHz. Supports image modes of 1-Line, 2-TDI, and 4-TDI. Supports ISP image functions and manual adjustment of Gamma correction, FFC, LUT, black level, etc. Adopts bi-directional I/O hardware design. Compact design and flexible installation. Compatible with GigE Vision V2.0 and GenlCam standard.

Technische Details

Sensor
CMOS
Megapixel
4096
Pixelgröße
7 μm
Bildchip
Monochrom
Format
Mono 8/10/12
Shutter
-
Geschwindigkeit
max. 28 kHz
Interface
2.5 Gigabit Ethernet, compatible with Gigabit Ethernet and Fast Ethernet
Objektiv
M42*1.0, flange back length 12 mm Connecting to F-mount, C-mount, and other lenses via adapter ring
Gewicht
260g
