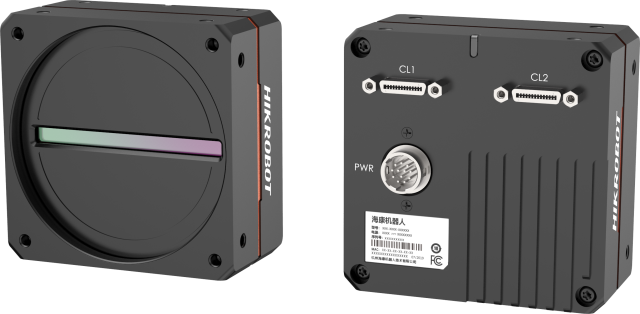

MV-CL162-91CM
16k Linescan Cameras. Camera Link, Mono,2-TDI, 3.5μm
Adopts multiple ISP technologies and supports manual adjustment for Gamma correction, FFC correction, LUT, black level, etc. Supports multiple exposure, image acquisition modes, and TDI function. Supports bi-directional I/O wiring for flexible input/output settings. Compact design and flexible installation. Compatible with Camera Link V2.0 Protocol, GenlCam Standard.
Technische Details
| Sensor | CMOS |
|---|---|
| Megapixel | 16384 |
| Pixelgröße | 3.5 μm x 3.5 μm |
| Bildchip | Monochrom |
| Format | Mono 8/10/12 |
| Shutter | - |
| Geschwindigkeit | max. 50 kHz |
| Interface | Camera Link (SDR connector); USB interface for updating firmware |
| Objektiv | M72*0.75, optical back focal length: 12 mm (0.5"), applicable to F-mount via lens adapter |
| Gewicht | 320 g |
